Chinese Factory Direct Sales Pneumatic Air Balancer Oil

• Overview
• Product Description
• Product Details
• Product Advantages
• Product Parameters
• Product Application
• Packaging & Shipping
• About Us

Overview

Basic Info.

Application	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type	Chain Hoist
Sling Type	Chain
Lift Speed	2.7-20m/Min
Maximum Lifting Height	3-8m
Chain Falls	2
Certification	CE
Condition	New
Color	Red
Product Name	Air Hoist
Applicable Industries	Hotels, Garment Shops, Building Material Shops
Usage	Construction Hoist
Core Components	Motor, Bearing, Gearbox, Engine
Lifting Speed	2.7-20m/Min
Full Load of Descent	5-38m/Min
Lifting Height	3m
Lifting Capacity	0.16-2t
Showroom Location	None
Power Source	Pneumatic
Weight (Kg)	40 Kg
Empty Lifting Speed	5-42m/Min
Chain Size(mm)	7*21 9*21
Motor Output	0.6-2kw
Air Pressure(Bar)	4-6
Transport Package	Standard Export Packing
Specification	Pneumatic
Trademark	VOHOBOO
Origin	Hubei, China
HS Code	8425190000
Production Capacity	5000sets Per Month

Packaging & Delivery

Package Size65.00cm * 55.00cm * 40.00cm Package Gross Weight60.000kg

Product Description

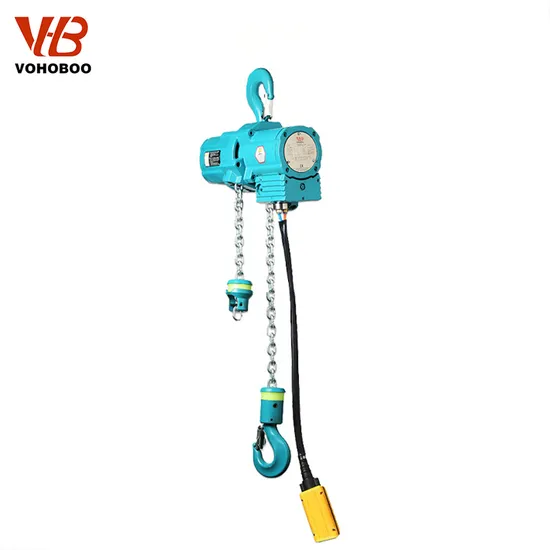

Air Hoist

Product Description

250kg 500kg 1000kg Kood explosion-proof pneumatic hoist pneumatic chain hoist In the pneumatic lifting equipment, the pneumatic chain crane uses air instead of electricity to generate electricity, which is different from the traditional crane. Compressed air will not produce sparks and explosion-proof, so the air chain crane is suitable for hazardous areas containing chemical powder, flammable or volatile substances.

Product Details Product Advantages Product Parameters

Capacity	8T	10T	12T	18T	20T
Work level	M3	M3	M3	M3	M3
Air pressure	6Bar	6Bar	6Bar	6Bar	6Bar
Lifting height	3m	3m	3m	3m	3m
falls of chain	3	4	4	3	4
Lifting motor power	3.5KW	3.5KW	3.5KW	3.5KW	3.5KW
Full load Lifting speed	1.2m/min	1m/min	1m/min	0.9m/min	0.7m/min
Full loadlowering speed	3m/min	2m/min	2m/min	1.9m/min	1.6m/min
Lifting motor air consumption	5.5cbm/min	5.5cbm/min	5.5cbm/min	5.5cbm/min	5.5cbm/min
Lifting motorAir connection	Rc1/2	Rc3/4	Rc3/4	Rc3/4	Rc3/4
Supply hose insidediameter	25mm	25mm	25mm	25mm	25mm
Lifting chain size	13*36mm	13*36mm	13*36mm	13*45mm	13*45mm
Length of control hose	3m	3m	3m	3m	3m
Sound level	79dB	79dB	79dB	78dB	78dB
Traverse motor power	2*0.25KW	2*0.25KW	2*0.25KW	0.7KW	0.7KW
Traverse speed	10m/min	10m/min	10m/min	5m/min	5m/min
Traverse motor air consumption	2*0.6cbm/min	2*0.6cbm/min	2*0.6cbm/min	1.3cbm/min	1.3cbm/min
traverse motor air connection	Rc1/4	Rc1/4	Rc1/4	Rc1/4	Rc1/4
traverse motor supply hose inside dia	G3/4	G3/4	G3/4	G3/4	G3/4
Traverse motor weight	200kg	200kg	200kg	260kg	260kg
Total weight	358kg	358kg	388kg	688kg	688kg
