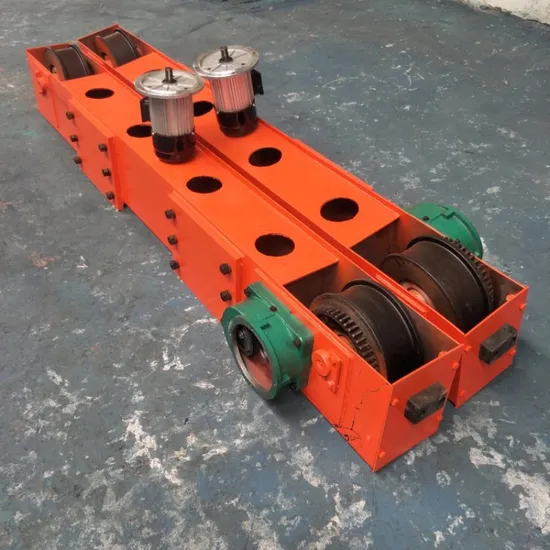

European Style Design Compact End Beam for Bridge Crane/Gantry Crane

• Overview
• Product Discription
• Product Features
• Product Display
• Technical Data
• Company Introduction
• FAQ

Overview

Basic Info.

Model NO.	overhead crane
Certification	CE, ISO9001
Condition	New
Operation Form	Air Operation+Ground Operation
Maximum Lifting Height	<10m
Maximum Lifting Weight	<20t
Type	Beam
Wheel Material	S45c, 42CrMo
Design	Customized
Quality	High-Quality
Finish Painting	Yellow, Blue
OEM	Accept
Voltage	220V/240V/380V/440V
Material	Steel Structure
Working Duty	M3-M7
Application	for Single Double Beam Crane
Control Method	Wireless Remote Control
Power Supply	380V 220V 200V 50Hz
Running Speed	0-20 M/Min
Lifting Capacity	1-200 Tons
Product Name	Crane End Beam
Motor Power	0.3, 0.4, 0.75, 1kw
Transport Package	Plywood Case
Specification	standard
Trademark	Sinoko
Origin	China
HS Code	8428909090
Production Capacity	200 Sets/Month

Product Description

Product Discription

FEM Standard 10t Bridge Crane End Carriage use rectangular tube manufacturing module, buffer motor drive, match with forged wheels, using numerical control lathe boring and milling of various Customized machine, Disposable completes the opening, boring, milling drilling. You just need to joint and adjust crane girder and the end carriage. The low cost, makes your crane manufacturing, installation and maintenance very easy.

Product Features

FEM Standard 5t Bridge Crane End Carriage Features: 1. Travel units with precisely manufactured wheels made of wear-resistant material provide for smooth running characteristics 2. Variable-speed inverter-fed drives for precise positioning and gentle loads on the entire design 3. Low maintenance costs: the travel units are rated for the entire crane service life Our supported and suspended end carriages, standardized wheel heads and bogies are ideal for single-girder cranes, double-girder cranes, and other industrial applications.

Product Display

Technical Data

End carriage model	Application of crane mode	Rectanglar steel tube	Wheel size	Motor power
L125-15	1t-7.5m	150*150*6	W125*60	0.3KW*2
L125-20	1t-11.5m
L125-25	1t-16.5m
L160-15	2t/3t-7.5m	150*200*8	W160*70	0.4KW*2
L160-20	2t/3t-11.5m
L160-25	2t/3t-16.5m
L160-30	2t/3t-22.5m
L160-35	2t/3t-28.5m
L200-20	5t-11.5m	150*250*8	W200*70	0.4KW*20.75KW*2
L200-25	5t-16.5m
L200-30	5t-22.5m
L200-35	5t-28.5m
L250-20	10t-11.5m	200*250*8200*300*8	W250*80	0.75KW*21.1KW*21.5KW*2
L250-25A	10t-16.5m
L250-30A	10t-22.5m
L250-35A	10t-28.5m
L250-25B	16t-16.5m
L250-30B	16t-22.5m
L250-35B	16t-28.5m
L315-30	20t-16.5m	200*400*8	W315*90	1.5KW*2
L315-35	20t-28.5m

Company Introduction

FAQ

Q1. Can the cranes be customized? Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.Q2. How many operation methods for my selections? We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.Q3. I have low headroom in my workshop, is it possible to install a crane in it? We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.Q4. Do you supply lift tools? Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us: 1. Lifting capacity. 2. Span length.(rail center to rail center) 3. Lifting height.(hook center to ground) 4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage. 6. Working condition: what kind of material to lift? temperature? 7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
